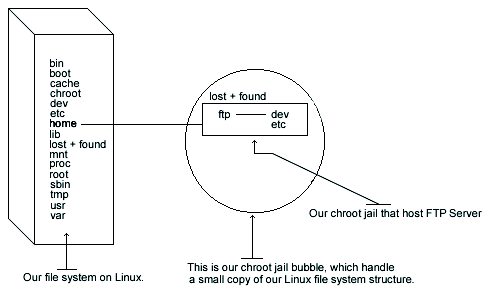

What you're essentially doing is creating a skeleton root file system with enough components necessary, binaries, password files, etc. to allow Unix to do a chroot when the user logs in. Note that if you use the
--enable-ls
option during compilation as seen above, the /home/ftp/bin
, and /home/ftp/lib
directories are not required since this new
option allows Wu-ftpd to use its own ls
function. We still continue to demonstrate the old method for people that prefer to copy /bin/ls
to the chroot'd FTP
directory, /home/ftp/bin
and create the appropriated library related to ls
.
The following are the necessary steps to run Wu-ftpd software in a chroot jail:
First create all the necessary chrooted environment directories as shown below:
[root@deep ] /# mkdir /home/ftp/dev [root@deep ] /# mkdir /home/ftp/etc [root@deep ] /# mkdir /home/ftp/bin [root@deep ] /# mkdir /home/ftp/lib
Require only if you are not using the | |
Require only if you are not using the |
Change the new directories permission to 0511
for security reasons:
The chmod command will make our chrooted dev
, etc
, bin
, and lib
directories
readable and executable by the super-user root
and executable by the user-group and all users.
[root@deep ] /# chmod 0511 /home/ftp/dev/ [root@deep ] /# chmod 0511 /home/ftp/etc/ [root@deep ] /# chmod 0511 /home/ftp/bin [root@deep ] /# chmod 0511 /home/ftp/lib
Require only if you are not using the | |
Require only if you are not using the |
Copy the /bin/ls
binary to /home/ftp/bin
directory and change the permission of the ls
program to 0111
.
You don't want users to be able to modify the binaries:
[root@deep ] /# cp /bin/ls /home/ftp/bin [root@deep ] /# chmod 0111 /bin/ls /home/ftp/bin/ls
Require only if you are not using the | |
Require only if you are not using the |
This step is necessary only if you're not using the --enable-ls
option during the configure time of Wu-ftpd. See the Compile and Optimize section in this chapter for more information.
Find the shared library dependencies of the ls
Linux binary program:
[root@deep ] /# ldd /bin/ls
libc.so.6 => /lib/libc.so.6 (0x00125000)
/lib/ld-linux.so.2 =7gt; /lib/ld-linux.so.2 (0x00110000)
Copy the shared libraries identified above to your new lib
directory under /home/ftp
directory:
[root@deep ] /# cp /lib/libc.so.6 /home/ftp/lib/ [root@deep ] /# cp /lib/ld-linux.so.2 /home/ftp/lib/
Require only if you are not using the | |
Require only if you are not using the |
These library are needed to make ls
work. Also, steps 3 and 4 above are required only if you want to use the ls
Linux binary program instead of the --enable-ls
option that uses
the new internal ls
capability of Wu-ftpd.
Create your /home/ftp/dev/null
file:
[root@deep ] /# mknod /home/ftp/dev/null c 1 3 [root@deep ] /# chmod 666 /home/ftp/dev/null
Copy the group
and passwd
files in /home/ftp/etc
directory. This should not be the same as your real ones. For this reason, we'll remove all non FTP
users except for the super-user root
in both of these files, passwd
and group
.
[root@deep ] /# cp /etc/passwd /home/ftp/etc/ [root@deep ] /# cp /etc/group /home/ftp/etc/
Edit the passwd
file, vi /home/ftp/etc/passwd
and delete all entries except for the super-user root
and your allowed FTP
users. It is very important that the passwd
file in
the chroot environment has entries like:
root:x:0:0:root:/:/dev/null ftpadmin:x:502:502::/ftpadmin/:/dev/null
We can notice two things here: first, the home directory for all users inside this modified passwd
file are now changed to reflect the new chrooted FTP
directory i.e. /home/ftp/./ftpadmin/
begins /ftpadmin/
, and also, the name of the user's login
shell for the root
account has been changed to /dev/null
.
Edit the group
file, vi /home/ftp/etc/group
and delete all entries except for the super-user root
and all your allowed FTP
users. The group
file should correspond to your normal group file:
root:x:0:root ftpadmin:x:502:
Now we must set passwd
, and group
files in the chroot jail directory immutable for better security.
[root@deep ] /# cd /home/ftp/etc/ [root@deep ] /# chattr +i passwd
Set the immutable bit on group
file:
[root@deep ] /# cd /home/ftp/etc/ [root@deep ] /# chattr +i group
